Classification: Grinding equipment
Overview: 1. General description of Super fine grinderWFJ Super Fine Grinder consists of feeding device, main machine (including classification device), transferring pipe, cyclone separator, bag filter and fan, etc. It features compact design, reasonable struct…
Excellent quality and ingenious manufacturing

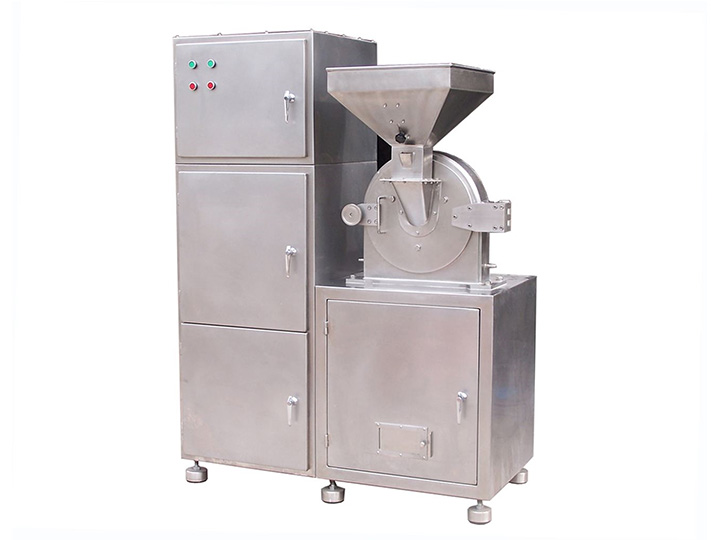

1. General description of Super fine grinder
WFJ Super Fine Grinder consists of feeding device, main machine (including classification device), transferring pipe, cyclone separator, bag filter and fan, etc. It features compact design, reasonable structure, and no sieve. There is classification device in the machine, it can make the grinding and classification one time. Negative pressure can exhaust the heat that generated during the grinding work, so it is suitable for grinding thermal sensitive material as well. The application range of this machine is wide, can continuously work and discharge size is adjustable. It can be used for grinding and classification for materials such as: chemical products, foodstuff, medicine, Chinese medicine, cosmetics, dyestuff, resin and shell, etc.
2. Technical parameters of Super fine grinder
|
Model |
WFJ-15 |
WFJ-18 |
WFJ-36 |
WFJ-60 |
|
Capacity (kg/h) |
10-200 |
20-450 |
60-1000 |
100-1500 |
|
Feed size (mm) |
<10 |
<12 |
<15 |
<18 |
|
Discharge size (mesh) |
80-320 |
80-450 |
80-450 |
80-450 |
|
Total power (Kw) |
13.7 |
19.07 |
38.85 |
65.2 |
|
Main rotary speed (rpm) |
4500 |
4480 |
4000 |
4000 |
|
Overall size (mm) |
5410×1660×2500 |
5500×1800×3100 |
9000×2200×4000 |
9000×2700×5280 |
